2020 New design Core Filling Snacks Flavoured Jam Center Snack Food Processing Line Core filling snacks making machine

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $25,000.00
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$200.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
GERMANY, japan
Showroom Location:
Philippines, Argentina
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Sunward
Model Number:
TSE65
Voltage:
380V/50Hz
Power(W):
70--200kw
Weight:
1-5ton
Dimension(L*W*H):
17000*1300*2200mm
Certification:
CE;ISO9001
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training
Key Selling Points:
High Productivity
Name:
core filling snacks making machine
Usage:
produce core filling snacks
Capacity:
100--500kg/h
Model:
TSE65; TSE70; TSE85
Machine Materials:
Stainless steel
Color:
Silver
Keywords:
core filling snacks extruder machine
Package:
Wooden Case
MOQ:
1 Set
Application:
core filling snack
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
inside is covered in plastic film, outside is wooden case.
Port
Qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 To be negotiated
Video Description
Product Description

2020 New design Core Filling Snacks Flavoured Jam Center Snack Food Processing Line Core filling snacks making machine

1. Brief Introduction:

Core Filling Snack/ Puffed leisure Food production line can do the works of raw materials preparation, extrusion, core filling, shaping,cutting,coating and flavoring at a time, which is high automation degree. This production line has the advantages of more machines choice,flexible and diverse configurations,wide range of raw materials application, numerous in products variety and easy operation. It can make the puffed food, such as core filling snack food, filling biscuit, nutrition breakfast, corn flakes etc. After being puffed, the products are crispy, easy to digest and unique taste. They are the perfect leisure food for consumers.

2. Capacity: 100-500kg/h
3. Voltage in
China:

Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'local voltage according to different countries.

4. Machines Materials:
All the machines are made by stainless steel.

5. Flow chart:
Mixer--- Screw conveyor--- Twin-screw extruder ---Core filler ---Multi-function shaper ---Hoister --- Dryer ---Flavoring line
6.Samples for your reference:

Detailed Images

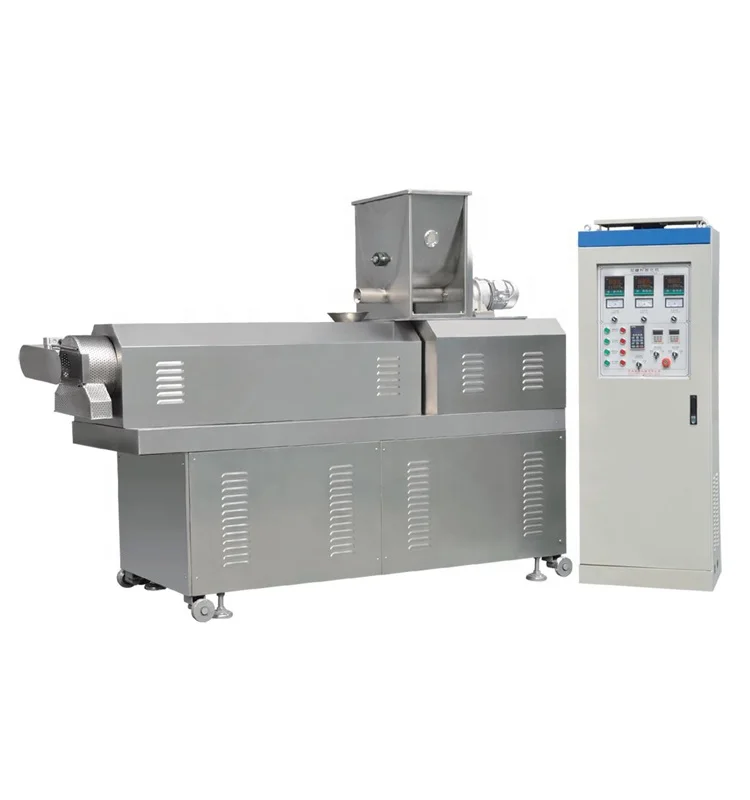

Twin-Screw extruder

Installed Power: 53kw
Consumption:37kw/h
Output: 200kg/h-250kg/h
Size: 2600*870*1950mm
The Main Features of Twin-Screw extruder:
(1)The main extruder adopts frequency speed controlling with high automation and stable per-formation.
(2)The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer. Adopting the building block structure and combining willingly according to the different demand.

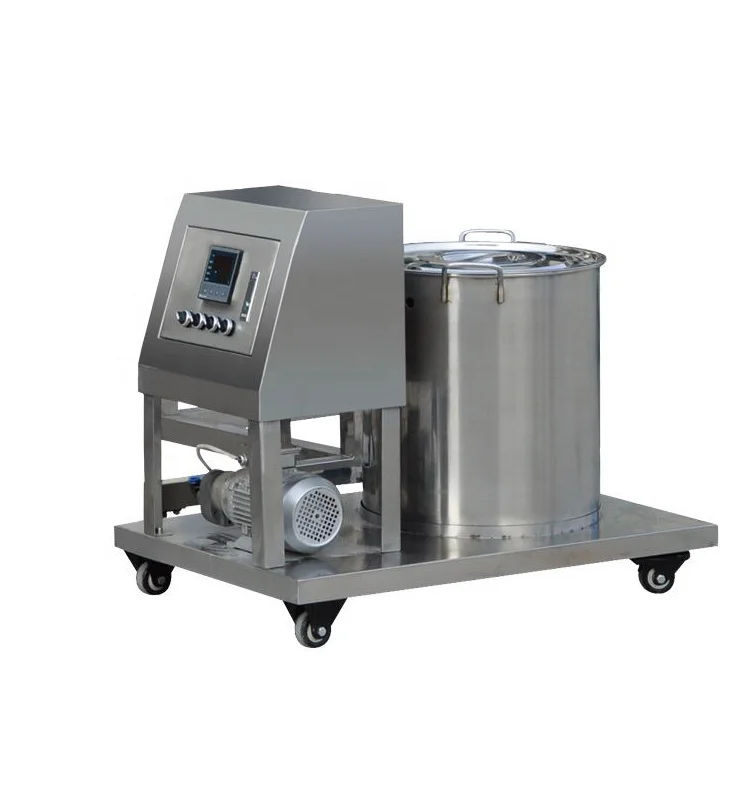

Core filler


Installed Power: 1.87 kw
Consumption: 1.5kw/h
Output: According to Extruder
Size: 900*600*1700mm
Function: to fill the chocolate, cream and other liquid material into snack food after extruding.

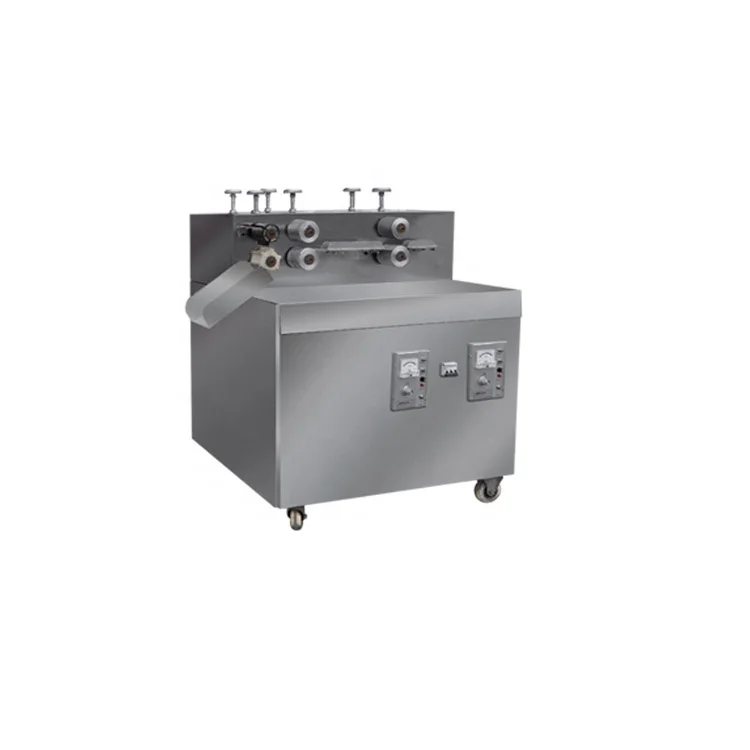

Multi- function shaper


Installed Power: 1.5kw
Consumption: 1.2 kw/h
Output: According to Extruder
Size: 1200*600*1100mm
Function:To shape snack food as well as core filling snack.
Feature: The length of snack food can be changing according to adjust the speed of cutter.

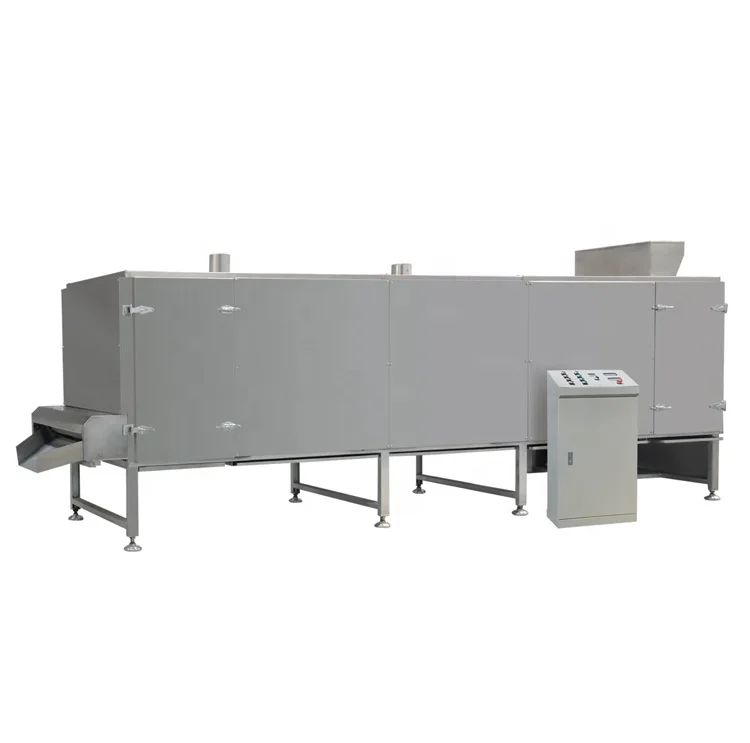

Multi- layer electrical dryer


Installed Power45kw
Consumption: 30kw/h
Output: 200kg/h-300kg/h
Size: 5200*1300*2200mm
Function: Baking and drying the food. All kinds of the inflating food, pet food, TVP/TSP food,peanut, nut, chew nut can be dried.

Oil Spraying Machine


Model:PY-I
Installed Power: 9.1kw
Consumption:5.1kw/h-9.1kw/h
Output:According to popcorn machine
Size: 2200*800*1350mm
Function:1.It is for chocolate/sugar spraying on the surface of the food. It works together with the hoister,single roller to finish all the flavoring step.

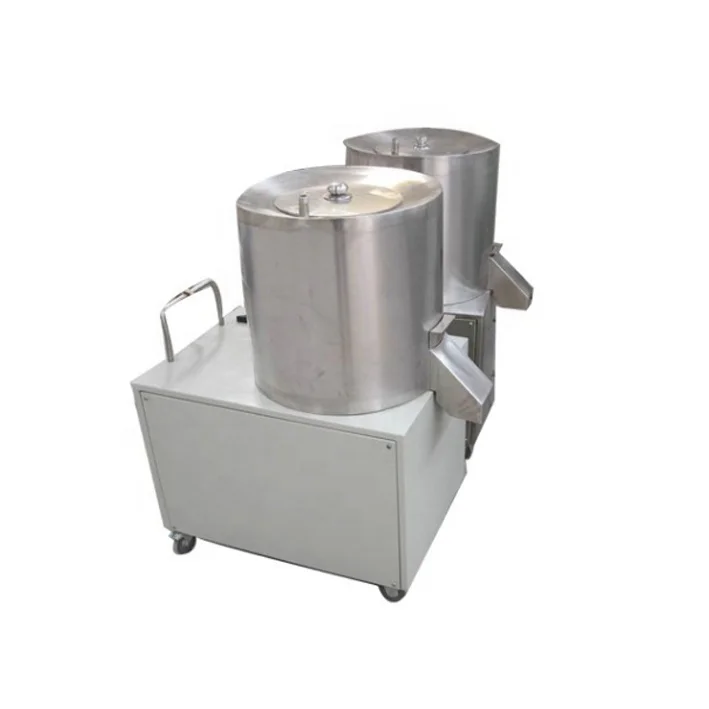

Mixer


Installed Power: 4kw
Consumption:3kw/h
Output: 30kg/batch-40kg/batch
Mixing Time:(2minutes-3minutes)/batch
Size: 1030*920*1350mm
Function: raw material with water, liquid chemical additive mix together fully.

Technical Parameter
Model
TSE 65-III
TSE 70
TSE 85
Installed Power
74 kw
105 kw
205 kw
Power Consumption
52 kw
75 kw
150 kw
Production Capacity
100-150 kg/h
200-260 kg/h
400-500 kg/h
Dimension
17000*1300*2200 mm
20000*1500*2200 mm
30000*1500*2600 mm
Our Company

Jinan Sunward Machinery Co., Ltd.

Jinan Sunward Machinery Co., Ltd is an industry and trade integrated enterprise. The company is committed to R & D extrusion machinery and related ancillary equipments. It is covering mainly machinery and equipment for corn meal milling system, corn flakes/breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system,soy nuggets system; as well as pet food/fish food system.

Packing & Delivery

Packing and Shipping

1. Testing Machine before package.
2. Packaging: inside is covered in plastic film, outside is wooden case.
3. Shipping: 15-35 working days after receiving deposit.
4. The pictures of our packaging logistics for your reference.

FAQ

I. What's the pre-sale service of your company?
Related machines's technical parameter will be supplied to customer.
1. According to customer's factory size, factory layout can be provided in advance.
2. According to customer's material cost, general formulation can be prepared well.
3. Special machine can be supplied as customer's request.
4. Professional Advice about Market, machines, processing , materials, packing can be supplied.
5. Suggesting professional ship agent or helping book ship as customer request.
II. What's the after-sale service of your company?
1. Allocation chart as the buyer's request will be supplied.
2. Operation manual will be supplied after shipment.
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts will be sent with container .
5. First installation can be done by engineer.
6. Training workers in customer's factory.
III. If machines wearing parts need changing, what should we do?
We can offer the wearing parts all the time, and offer video.
IV. What's the payment terms if we want to buy the machines?
L/C, T/T 30% down payment, 70% balance before delivery.
