sink shrimp and crab feed machine floating fish fee making equipment fishing food making equipment

FOB Reference Price:Get Latest Price
$6,000.00 - $100,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
TSE65/70/85/90/95
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Sunward
Voltage:
380V
Application:
Fish, dog food .cat food ,fish food and etc.
Weight:
2000KG
Certification:
CE, ISO9001
Dimension(L*W*H):
25000*1500*2200
Power(W):
80kw
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Malaysia
Showroom Location:
Canada, Sri Lanka
After-sales Service Provided:
Engineers available to service machinery overseas
Product:
Floating & Sinking Fish Food Process Machinery
Main material:
stainless steel
Color:
silver
Installation:
engineer installing fish feed processing granulator
Electric parts:
CHNT, ABB
Extruder motor:
semes
Machine:
Farm Using Floating Fish Feed Machine
Keywords:
Floating fish food pellet machine
Warranty:
1 year
Supply Ability
Supply Ability:
30 Set/Sets per Month Floating & Sinking Fish Food Process Machinery
Packaging & Delivery
Packaging Details
Plywood case outside, plastic film inside
Port
Qingdao port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 To be negotiated
Video Description
Product Description

sink shrimp and crab feed machine floating fish fee making equipment fishing food making equipment


1. Process of floating & sinking fish food machine:
Preparing raw material system→ Mixing system→ Extruding system→ Drying system→Flavoring system→ Packing system

2. Products of floating & sinking fish food machine is mainly to produce floating fish food. It also can produce different kinds of dog food, cat food, bird food, frog food ,sinking fish food and so on.


3. Function of
floating & sinking fish food machine It works with simple operation, accurate parameter control, The products  can  be finished in the stipulated temperature, pressure,humidity and time. Owing to the reasonable design,special materials, the stability, repairs can be guaranteed and ensured. The various shape and taste must meet the different requirements of fish food dog food, cat food and so on.

4.Raw materials fish farm using floating & sinking fish food machine:
Fish feed pellet machine adopts corn flour, bone meal,fish meal and other grain flouras raw materials.

5. Output of floating & sinking fish food machine can be 100kg/h-150kg/h, 200kg/h-300kg/h, 300kg/h-500kg/h,600kg/h-800kg/h, 800kg/h-1000kg/h, 1000kg/h-1500kg/h, 1500kg/h-2000kg/h and so on.

parameter
TSE-65
TSE-70
TSE-85
TSE90
TSE95
Installed capacity(kw)
35
50
110
130
150
Real power(kw/h)
22
37
75
90
110
Output(kg/h)
100-150
200-300
300-800
800-1500
1500-2000

6. Features of fish feed pellet machine
1 The finished pellets can keep floating more than 10 hours.
2. The floating time can be controlled by the puffing degree adjustment.
3. Floating & sinking fish food machine can make pellet from 1.0mm-15mm just by changing the mold.
4. Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
5. High temperature and high pressure cooking process can kill the salmonella and bacterial infections and also makes the pellets easily to digest.
6. The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

7.Voltage :
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

8. All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

Detailed Images

Mixer


Installed Power: 4kw
Consumption:3kw/h
Output: 30kg/batch-40kg/batch
Mixing Time:(2minutes-3minutes)/batch
Size: 1030*920*1350mm
Function: raw material with water, liquid chemical additive mix together fully.

Twin-Screw extruder

The Main Features of Twin-Screw extruder:
(1)The main extruder adopts frequency speed controlling with high automation and stable per-formation.
(2)The screws are made of the alloy steel and special craft, durable usage, high pressure,
the screw life is longer. Adopting the building block structure and combining willingly according to the different demand.
(3)The forced lubrication system, can guarantee the equipment transmission life longer.

Dryer

Features of Dryer:
1.The dryer has the compact structure, small occupying,
large drying area, small surface area, slight radiating heat and high thermal efficiency.
2. The belt and the heat preservation use the stainless steel; it is suitable for food industry.
3. The running speed of belt net can be controlled (frequency)
4.The temperature can be controlled willfully and designed according to the need.

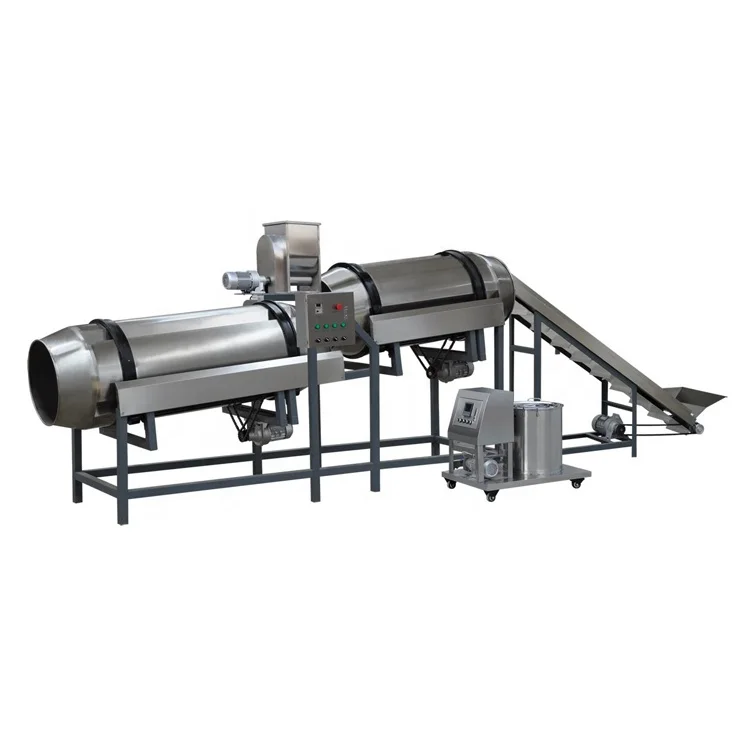

Double roller flavoring machine


Installed Power:0.75kw
Consumption Power:0.5kw/h
Dimension:2350*870*1780mm
Function:it is used to seasoning products with flavoring powder and liquid.

Company introduction

 Jinan Sunward Machinery Co., Ltd is an industry and trade integrated enterprise. The company is committed to R & D extrusion machinery and related ancillary equipments. It is covering mainly machinery and equipment for corn meal milling system, corn flakes/breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system,soy nuggets system; as well as pet food/fish food system.

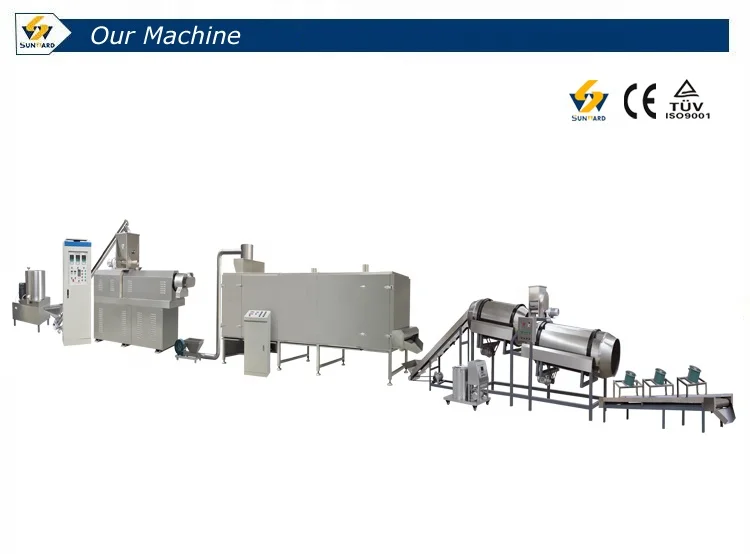

production process
Packing & Delivery

Packing and Shipping:

1. Testing Machine before package.
2. Packaging: inside is covered in plastic film, outside is wooden case.
3. Shipping: 15-35 working days after receiving deposit.
4. The pictures of our packaging logistics for your reference.

Our service

-- Before sale service:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
--Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.
--After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. 1-2 engineers will be arranged for customer
